42 Series

Series: 42 Series

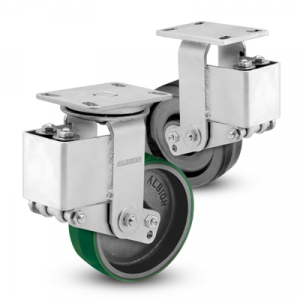

Spring-loaded casters are designed to protect the transported load. Albion 42 series casters protect from damaging shocks or unwanted vibration and movement. 42 Series provides greater capacities than the Albion 40 Series. Noise levels are reduced through the dampening effects of the springs.

42 Series maximum-rated capacities will deflect the wheel approximately 5/8″ (50%). Different load springs for each series permits a wide variation in ride ‘softness.’ The springs can be preloaded to obtain various degrees of deflection; contact factory for more details.

Features
Applications

Heavy Duty Caster

Kingpin

Premium Quality

RoHS Compliant

Spring Loaded

Aerospace/GSE

Aircraft Tripod Jacks

Computer Equipment

Material Handling

Monitoring Equipment

Shock-Sensitive Applications

Interact and Download Native CAD models below. Rotate, zoom in/out, and see critical dimensions by utilizing your mouse.

Account Type
- Register Account
- Continue as Guest
Email*
Password*
Enter Password Confirm Password
Can We Help?*
How Do You Use Casters?*
Annual Caster Purchases
First Name*
Last Name*
Phone
Company*
Title
Address*
City*
Country*
Zip/Postal*
State/Province*
Comments
This field is for validation purposes and should be left unchanged.

42 Series

All measurements indicate the wheel diameter by the tread width.

The below capacity ranges indicate the working (dynamic) load that each caster will support. A safety factor should be included in your formula to determine your required load rating per caster.

W/(C-1)=R

W is total weight needed to move. C is total number of casters required. R is ideal load rating, with safety factor built in. Divide the total load weight by one less caster than you will use to safely determine load rating.

All plate measurements are the overall plate dimensions. If replacing casters, please select the closest match to see if the bolt holes match to your current plate.
