18 Series

Series: 18 Series

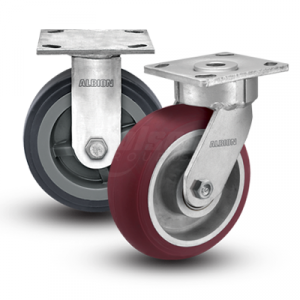

Albion 18 Series casters are ergonomically designed for ease of movement and quiet mobility. The sealed precision swivel bearing is maintenance-free and significantly reduces push/pull force, keeping equipment operations safer while improving efficiency. Rig is zinc-plated for an attractive, corrosion-resistant finish.

IMPORTANT: New rig designs have been announced for this product line. The CAD files below are being deprecated in August of 2024. New, updated CAD files should be available by early September of 2024.

18 Series

Interact and Download Native CAD models below. Rotate, zoom in/out, and see critical dimensions by utilizing your mouse.

Account Type
- Register Account
- Continue as Guest
Email*
Password*
Enter Password Confirm Password
Can We Help?*
How Do You Use Casters?*
Annual Caster Purchases
First Name*
Last Name*
Phone
Company*
Title
Address*
City*
Country*
Zip/Postal*
State/Province*
Comments
This field is for validation purposes and should be left unchanged.

18 Series

All measurements indicate the wheel diameter by the tread width.

The below capacity ranges indicate the working (dynamic) load that each caster will support. A safety factor should be included in your formula to determine your required load rating per caster.

W/(C-1)=R

W is total weight needed to move. C is total number of casters required. R is ideal load rating, with safety factor built in. Divide the total load weight by one less caster than you will use to safely determine load rating.

All plate measurements are the overall plate dimensions. If replacing casters, please select the closest match to see if the bolt holes match to your current plate.
