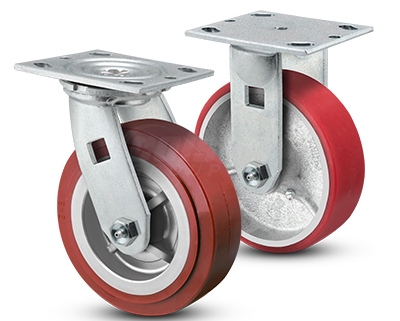

Pemco E-Line Economical 2-inch wide Caster Series

E-line is an economical lineup of casters and wheels designed and mass-produced for a range of medium-duty applications with load requirements ranging from 300 to 1,250 pounds per caster. From shop carts to containers, to platform and lumber carts – the E-line is the most competitive and in-stock 2″ wide solution.




ES4X2CIR

ES4X2CIR

Caster Type:
Swivel
Wheel Diameter:
4.0000
Tread Width:
2.0000
Wheel Type:
Cast Iron
Bearing Type:
Roller
Fastening Type:
Top Plate
Fastening Size:
4" x 4-1/2"
Capacity:
800
Mount Height:
5.6250
ES4X2CIR
Capacity: 800 lbs
Wheel Diameter: 4.0000 in
Tread Width: 2.0000 in
Caster Type: Swivel
Bearing Type: Roller
Wheel Type: Cast Iron
ES4X2PHNDTBK

ES4X2PHNDTBK

Caster Type:
Swivel
Wheel Diameter:
4.0000
Tread Width:
2.0000
Wheel Type:
Phenolic
Bearing Type:
Delrin
Fastening Type:
Top Plate
Fastening Size:
4" x 4-1/2"
Capacity:
800
Mount Height:
5.6250
ES4X2PHNDTBK
Capacity: 800 lbs
Wheel Diameter: 4.0000 in
Tread Width: 2.0000 in
Caster Type: Swivel
Bearing Type: Delrin
Wheel Type: Phenolic
ES4X2TPDDTBK

ES4X2TPDDTBK

Caster Type:
Swivel
Wheel Diameter:
4.0000
Tread Width:
2.0000
Wheel Type:
Thermo-Rubber (Donut)
Bearing Type:
Delrin
Fastening Type:
Top Plate
Fastening Size:
4" x 4-1/2"
Capacity:
300
Mount Height:
5.6250
ES4X2TPDDTBK
Capacity: 300 lbs
Wheel Diameter: 4.0000 in
Tread Width: 2.0000 in
Caster Type: Swivel
Bearing Type: Delrin
Wheel Type: Thermo-Rubber (Donut)
ES5X2CIR

ES5X2CIR

Caster Type:
Swivel
Wheel Diameter:
5.0000
Tread Width:
2.0000
Wheel Type:
Cast Iron
Bearing Type:
Roller
Fastening Type:
Top Plate
Fastening Size:
4" x 4-1/2"
Capacity:
1000
Mount Height:
6.5000
ES5X2CIR
Capacity: 1000 lbs
Wheel Diameter: 5.0000 in
Tread Width: 2.0000 in
Caster Type: Swivel
Bearing Type: Roller
Wheel Type: Cast Iron
ES5X2PHNBTBK

ES5X2PHNBTBK

Caster Type:
Swivel
Wheel Diameter:
5.0000
Tread Width:
2.0000
Wheel Type:
Phenolic
Bearing Type:
Ball
Fastening Type:
Top Plate
Fastening Size:
4" x 4-1/2"
Capacity:
1000
Mount Height:
6.5000
ES5X2PHNBTBK
Capacity: 1000 lbs
Wheel Diameter: 5.0000 in
Tread Width: 2.0000 in
Caster Type: Swivel
Bearing Type: Ball
Wheel Type: Phenolic
ES5X2TPD

ES5X2TPD

Caster Type:
Swivel
Wheel Diameter:
5.0000
Tread Width:
2.0000
Wheel Type:
Thermo-Rubber (Donut)
Bearing Type:
Roller
Fastening Type:
Top Plate
Fastening Size:
4" x 4-1/2"
Capacity:
350
Mount Height:
6.5000
ES5X2TPD
Capacity: 350 lbs
Wheel Diameter: 5.0000 in
Tread Width: 2.0000 in
Caster Type: Swivel
Bearing Type: Roller
Wheel Type: Thermo-Rubber (Donut)
ES5X2TUM

ES5X2TUM

Caster Type:
Swivel
Wheel Diameter:
5.0000
Tread Width:
2.0000
Wheel Type:
Thermo-Urethane
Bearing Type:
Roller
Fastening Type:
Top Plate
Fastening Size:
4" x 4-1/2"
Capacity:
600
Mount Height:
6.5000
ES5X2TUM
Capacity: 600 lbs
Wheel Diameter: 5.0000 in
Tread Width: 2.0000 in
Caster Type: Swivel
Bearing Type: Roller
Wheel Type: Thermo-Urethane
ES6X2MOPCAMS

ES6X2MOPCAMS

Caster Type:
Swivel
Wheel Diameter:
6.0000
Tread Width:
2.0000
Wheel Type:
Mold-on Poly
Bearing Type:
Roller
Fastening Type:
Top Plate
Fastening Size:
4" x 4-1/2"
Capacity:
1200
Mount Height:
7.5000
ES6X2MOPCAMS
Capacity: 1200 lbs
Wheel Diameter: 6.0000 in
Tread Width: 2.0000 in
Caster Type: Swivel
Bearing Type: Roller
Wheel Type: Mold-on Poly
ES6X2POD

ES6X2POD

Caster Type:
Swivel
Wheel Diameter:
6.0000
Tread Width:
2.0000
Wheel Type:
Polypropylene HD
Bearing Type:
Roller
Fastening Type:
Top Plate
Fastening Size:
4" x 4-1/2"
Capacity:
600
Mount Height:
7.5000
ES6X2POD
Capacity: 600 lbs
Wheel Diameter: 6.0000 in
Tread Width: 2.0000 in
Caster Type: Swivel
Bearing Type: Roller
Wheel Type: Polypropylene HD
ES6X2TPR

ES6X2TPR

Caster Type:
Swivel
Wheel Diameter:
6.0000
Tread Width:
2.0000
Wheel Type:
Thermo-Rubber (Flat)
Bearing Type:
Roller
Fastening Type:
Top Plate
Fastening Size:
4" x 4-1/2"
Capacity:
500
Mount Height:
7.5000
ES6X2TPR
Capacity: 500 lbs
Wheel Diameter: 6.0000 in
Tread Width: 2.0000 in
Caster Type: Swivel
Bearing Type: Roller
Wheel Type: Thermo-Rubber (Flat)
ES8X2CIR

ES8X2CIR

Caster Type:
Swivel
Wheel Diameter:
8.0000
Tread Width:
2.0000
Wheel Type:
Cast Iron
Bearing Type:
Roller
Fastening Type:
Top Plate
Fastening Size:
4" x 4-1/2"
Capacity:
1250
Mount Height:
9.5000
ES8X2CIR
Capacity: 1250 lbs
Wheel Diameter: 8.0000 in
Tread Width: 2.0000 in
Caster Type: Swivel
Bearing Type: Roller
Wheel Type: Cast Iron
ES8X2PHNBTBK

ES8X2PHNBTBK

Caster Type:
Swivel
Wheel Diameter:
8.0000
Tread Width:
2.0000
Wheel Type:
Phenolic
Bearing Type:
Ball
Fastening Type:
Top Plate
Fastening Size:
4" x 4-1/2"
Capacity:
1250
Mount Height:
9.5000
ES8X2PHNBTBK
Capacity: 1250 lbs
Wheel Diameter: 8.0000 in
Tread Width: 2.0000 in
Caster Type: Swivel
Bearing Type: Ball
Wheel Type: Phenolic
ES8X2TPD

ES8X2TPD

Caster Type:
Swivel
Wheel Diameter:
8.0000
Tread Width:
2.0000
Wheel Type:
Thermo-Rubber (Donut)
Bearing Type:
Roller
Fastening Type:
Top Plate
Fastening Size:
4" x 4-1/2"
Capacity:
600
Mount Height:
9.5000
ES8X2TPD
Capacity: 600 lbs
Wheel Diameter: 8.0000 in
Tread Width: 2.0000 in
Caster Type: Swivel
Bearing Type: Roller
Wheel Type: Thermo-Rubber (Donut)
ES8X2TUM

ES8X2TUM

Caster Type:
Swivel
Wheel Diameter:
8.0000
Tread Width:
2.0000
Wheel Type:
Thermo-Urethane
Bearing Type:
Roller
Fastening Type:
Top Plate
Fastening Size:
4" x 4-1/2"
Capacity:
800
Mount Height:
9.5000
ES8X2TUM
Capacity: 800 lbs
Wheel Diameter: 8.0000 in
Tread Width: 2.0000 in
Caster Type: Swivel
Bearing Type: Roller
Wheel Type: Thermo-Urethane
ESRS4X2MOR

ESRS4X2MOR

Caster Type:
Swivel
Wheel Diameter:
4.0000
Tread Width:
2.0000
Wheel Type:
Mold-on Rubber
Bearing Type:
Roller
Fastening Type:
Top Plate
Fastening Size:
4" x 4-1/2"
Capacity:
400
Mount Height:
5.6250
ESRS4X2MOR
Capacity: 400 lbs
Wheel Diameter: 4.0000 in
Tread Width: 2.0000 in
Caster Type: Swivel
Bearing Type: Roller
Wheel Type: Mold-on Rubber
ESRS4X2PODD

ESRS4X2PODD

Caster Type:
Swivel
Wheel Diameter:
4.0000
Tread Width:
2.0000
Wheel Type:
Polypropylene HD
Bearing Type:
Delrin
Fastening Type:
Top Plate
Fastening Size:
4" x 4-1/2"
Capacity:
500
Mount Height:
5.6250
ESRS4X2PODD
Capacity: 500 lbs
Wheel Diameter: 4.0000 in
Tread Width: 2.0000 in
Caster Type: Swivel
Bearing Type: Delrin
Wheel Type: Polypropylene HD
ESRS4X2TPRTBK

ESRS4X2TPRTBK

Caster Type:
Swivel
Wheel Diameter:
4.0000
Tread Width:
2.0000
Wheel Type:
Thermo-Rubber (Flat)
Bearing Type:
Roller
Fastening Type:
Top Plate
Fastening Size:
4" x 4-1/2"
Capacity:
300
Mount Height:
5.6250
ESRS4X2TPRTBK
Capacity: 300 lbs
Wheel Diameter: 4.0000 in
Tread Width: 2.0000 in
Caster Type: Swivel
Bearing Type: Roller
Wheel Type: Thermo-Rubber (Flat)
ESRS5X2MOPCAMS

ESRS5X2MOPCAMS

Caster Type:
Swivel
Wheel Diameter:
5.0000
Tread Width:
2.0000
Wheel Type:
Mold-on Poly
Bearing Type:
Roller
Fastening Type:
Top Plate
Fastening Size:
4" x 4-1/2"
Capacity:
1100
Mount Height:
6.5000
ESRS5X2MOPCAMS
Capacity: 1100 lbs
Wheel Diameter: 5.0000 in
Tread Width: 2.0000 in
Caster Type: Swivel
Bearing Type: Roller
Wheel Type: Mold-on Poly
